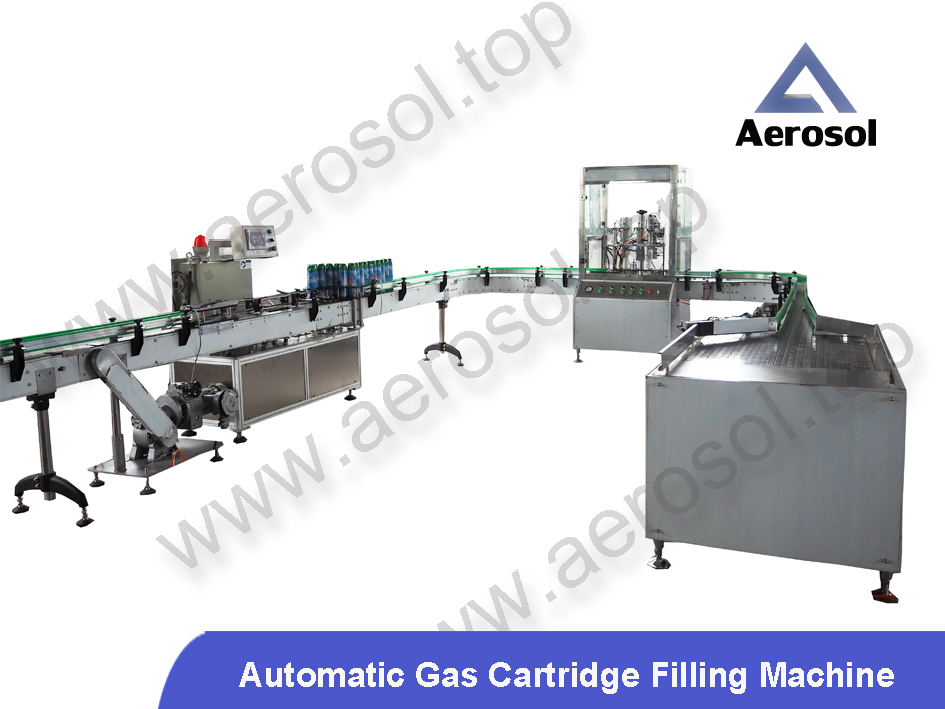

Automatic Gas Cartridge Filling Machine

Description : Cooking Gas Production Filling Line

  • Features:
  • Features

    1. Sealing guided,automatically stop on unqualified sealing;

    2. Accurate & efficient gas inflation reduces gas consumption;

    3. Can be perfectly matched with automatic water bath leakage detection machine, automatic check weighing machine,automatic actuator placing machine, capping machine and ink jet printer.





Automatic Gas Cartridge Filling Machine





Automatic Gas Cartridge Filling Machine

Automatic Gas Cartridge Filling Machine





Working Process

Manual Can Feeding   Empty Can Conveying System   Manual Valve Insertion   Crimping & Gassing System   Conveyor    Next Station



Features

1. Sealing guided,automatically stop on unqualified sealing;

2. Accurate & efficient gas inflation reduces gas consumption;

3. Can be perfectly matched with automatic water bath leakage detection machine, automatic check weighing machine,automatic actuator placing machine, capping machine and ink jet printer.







Inflation capacity

50-750ml

Inflation Accuracy

≤±1%

Capping accuracy

≤1%

Production Capacity

3000-3600 cans/hr

Working Pressure

0.65-1Mpa

Maximum Air Consumption

3m2/min

Applicable Aerosol Can Diameter

35-65mm

Applicable Aerosol Can Height

80-330mm

Valve Requirement

1”  international standard valve













Automatic Gas Cartridge Filling Machine





Inflation capacity

50-750ml

Inflation Accuracy

≤±1%

Capping accuracy

≤1%

Production Capacity

3000-3600 cans/hr

Working Pressure

0.65-1Mpa

Maximum Air Consumption

3m2/min

Applicable Aerosol Can Diameter

35-65mm

Applicable Aerosol Can Height

80-330mm

Valve Requirement

1”  international standard valve
