Your Location : Home » PRODUCTS » Aerosol Line Supporting Equipment » AWPL Automatic L-shaped Actuator Placer

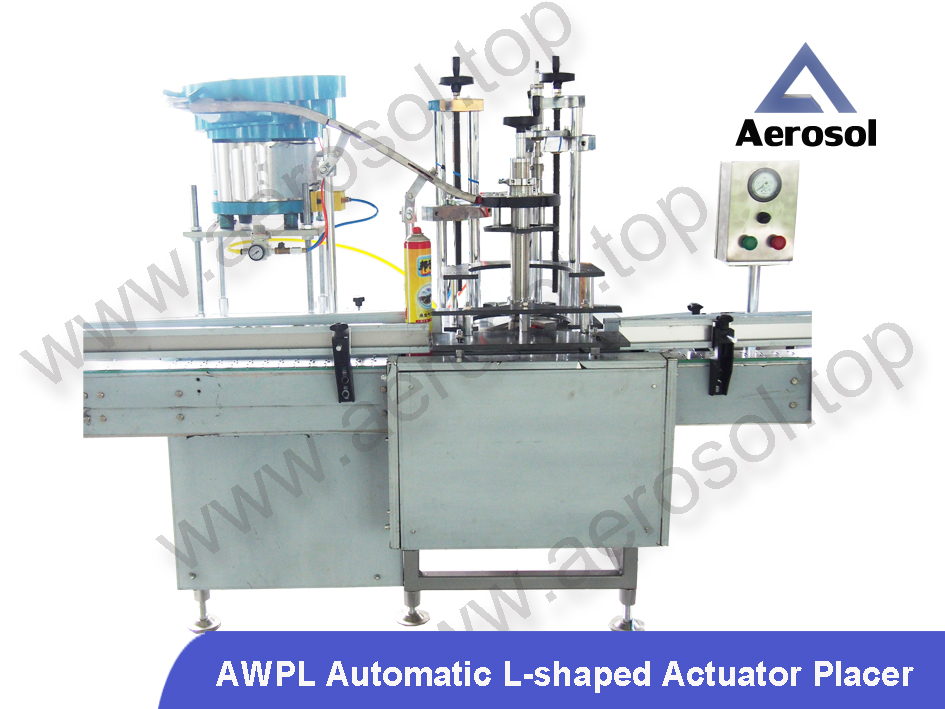

AWPL Automatic L-shaped Actuator Placer

Description : AWPL Automatic L-shaped Actuator Placer

  • Features:

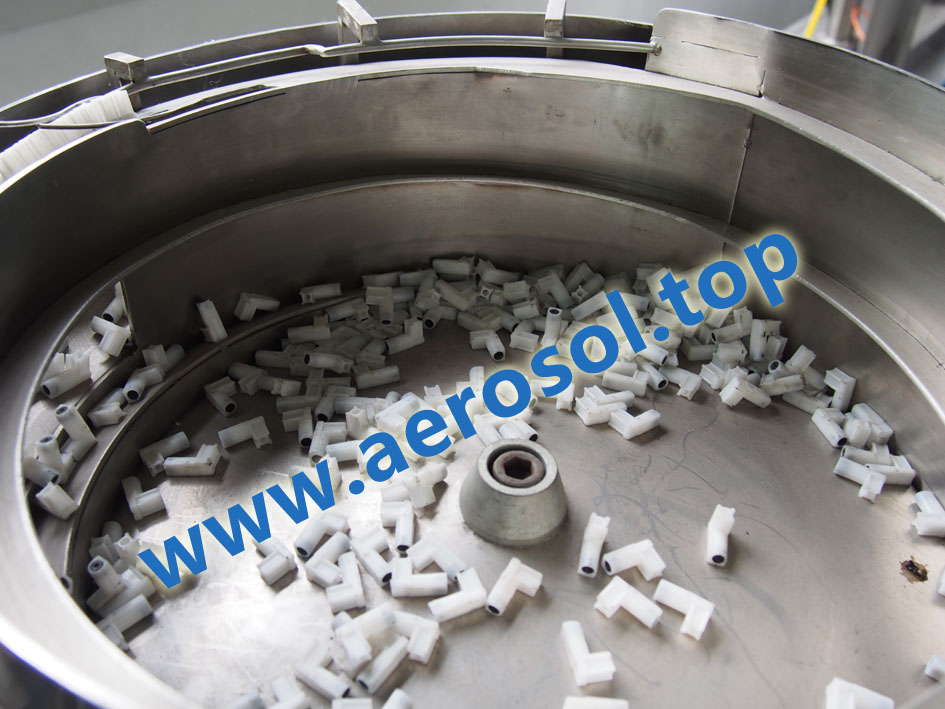

  • AWPL Automatic L-shaped Actuator Placer consists of a vibration hopper and a stepping pressure actuator main body, can automatically arrange and convey L-shaped actuator and automatically press actuator onto aerosol cans, and has the advantages of high speed, low noise, high automation degree, and so on.



AWPL Automatic L-shaped Actuator Placer

AWPL Automatic L-shaped Actuator Placer

AWPL Automatic L-shaped Actuator Placer



AWPL Automatic L-shaped Actuator Placer consists of a vibration hopper and a stepping pressure actuator main body, can automatically arrange and convey L-shaped actuator and automatically press actuator onto aerosol cans, and has the advantages of high speed, low noise, high automation degree, and so on.



Model

AWPL

Actuator specifications

various L-shaped actuator on 1” valves

Arranging mode

vibration hopper

Applicable aerosol can diameter

 ø35-ø65mm

Applicable aerosol can height

90-315mm

Production capacity

2400-3600 cans/hr

Air source

0.6Mpa-1Mpa clean and stable air source

Max air consumption

0.3 M³/min

Weight

about 400kg

Dimension(L×W×H)

1200×800×1800









AWPL Automatic L-shaped Actuator Placer



Model

AWPL

Actuator specifications

various L-shaped actuator on 1” valves

Arranging mode

vibration hopper

Applicable aerosol can diameter

 ø35-ø65mm

Applicable aerosol can height

90-315mm

Production capacity

2400-3600 cans/hr

Air source

0.6Mpa-1Mpa clean and stable air source

Max air consumption

0.3 M³/min

Weight

about 400kg

Dimension(L×W×H

1200×800×1800
